VISIBLY MORE DESIGN

PIXEL


A perfect combination of elegance, aesthetics and modern technology, providing up to 22% more light in a room

VISIBLY MORE distinctive features

+
The gaskets in the corners of the glazing bead are finished at the angle of 45°.
+
Matched in shape, straight glazing beads adapted to the shape of the profile.
+
Narrow floating mullion with symmetrically positioned handle.
+
More light in the home thanks to the narrower sash.
+
More slender sash.
See functionality

In each system you will find

Energy savings

Our window combines a high utility value with ground-breaking energy-saving solutions.

Appearance

The window should be an ornamentation that determines the character of the interior. We focus on the design, the visual aesthetics and the precision of manufacture, since it's the details that make up the whole product.

Durability and quality

We receive almost no complaints on our windows. We are confident in the quality of our products; therefore, we provide several years of warranty for each element.

Safety

When you are away, you don't have to worry about your property or the safety of your loved ones. Our windows are one of the safest on the market!

FIND YOUR colour
* The offer includes a range of wood-like colors and the RAL palette. The colors shown are for reference only and may differ from the actual colors.
VISIBLY MORE features

1.

WINSTEP PVC
AND ALU-PVC

WINSTEP PVC<br />AND ALU-PVC

A solution that makes it easier to go out onto the balcony and reduces the risk of tripping.

See more

2.


MOSQUITO NETTING

<br />MOSQUITO NETTING

Protect the interior against insects and guarantee uninterrupted sleep.

See more

3.

SLIDING
WINDOW

SLIDING<br />WINDOW

Particularly convenient in the kitchen, as you don't have to open the sashes wide.

See more

4.


WIN CLICK

<br />WIN CLICK

A handgrip on balcony doors allowing you to shut them from the outside.

See more

1.

DESIGN+
KEY LOCK HANDLE

DESIGN+ <br />KEY LOCK HANDLE

Additional lock protecting your home against burglary or breaking and entering.

See more

2.

RC1 AND RC2
ANTI-BURGLARY FITTING

RC1 AND RC2<br />ANTI-BURGLARY FITTING

Increased burglary protection through mushroom striker plates, an anti-drill plate and key lock handle.

See more

3.

TEMPERED AND ANTI-BURGLARY
GLASS PANELS

TEMPERED AND ANTI-BURGLARY <br />GLASS PANELS

Additional protection with a reinforced structure and resistance to breakage.

See more

1.


REINFORCEMENT

<br />REINFORCEMENT

The galvanised steel reinforcement ensures the durability, stability and functionality of the window.

2.

EPDM
GASKETS

EPDM<br />GASKETS

Durable and flexible gaskets with high resistance to atmospheric conditions such as UV radiation, humidity or ambient temperature changes.

3.

WINKHAUS
PRO LIGHT FITTING

WINKHAUS<br />PRO LIGHT FITTING

This excellent, advanced design guarantees the safety and comfort of use of our windows for many years.

See more

1.

GLUED-ON
AND INTERNAL MUNTINS

GLUED-ON<br />AND INTERNAL MUNTINS

Decorative elements that will work both in classical and modern interiors.

See more

2.

WINKHAUS
PRO LIGHT SELECT

WINKHAUS<br />PRO LIGHT SELECT

Our completely invisible hinges, concealed between the frame and the sash, highlight the unique design of the window.

See more

3.

EPDM
GASKETSGASKETS

EPDM<br />GASKETSGASKETS

Durable and flexible gasketsgaskets with high resistance to weather conditions, such as UV radiation, humidity or ambient temperature changes.

4.

WARMATEC GLASS
PANEL SPACER

WARMATEC GLASS <br />PANEL SPACER

Aesthetic and energy-saving spacer, available in 3 colours to perfectly match the colours of the window.

See more

5.

DESIGN+
handle

DESIGN+<br />handle

Minimalistic, elegant form available in a wide selection of colours.

See more

6.


COLORFULL

<br />COLORFULL

The uniform colour and structure of the entire window - even when opened - will provide your windows with an exquisite character.

7.

ORNAMENTAL
GLASS PANELS

ORNAMENTAL<br />GLASS PANELS

Wide selection of glass panels with various patterns that will match any interior.

See more

1.

WARMATEC
GLASS PANEL SPACER

WARMATEC<br /> GLASS PANEL SPACER

Improved tightness of the glass panels and better thermal insulation ensure a comfortable temperature in the room.

See more

2.

ENERGY, WARM AND COMFORT
SEALED GLAZING UNITS

ENERGY, WARM AND COMFORT <br />SEALED GLAZING UNITS

Reduced heating loss and energy consumption with low-emission coatings.

See more

3.

EPDM
GASKETS

EPDM<br />GASKETS

Durable and flexible gaskets with high resistance to weather conditions improve thermal insulation and reduce heat loss.

1.


PSK

<br />PSK

Balcony doors with an increased glazing area that lets more light into the house.

2.

WINSTEP PVC
AND ALU-PVC

WINSTEP PVC<br />AND ALU-PVC

Low balcony threshold making it easier to move between the interior and the terrace or balcony, reducing the risk of tripping.

See more

3.


WIN CLICK

<br />WIN CLICK

A handgrip for shutting the balcony door from the outside, without using the handle, so that you can easily go back inside.

See more
VISIBLY MORE projects
VISIBLY MORE details

Insulation

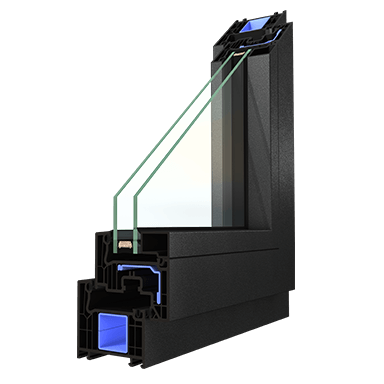

6-chamber class A window profile with a 3 mm wall thickness and 70 mm casing depth.

The window structure is a proprietary design of Oknoplast, based on top-quality class A window profiles. The number of chambers and the profile wall thickness guarantee not only the stability and durability of the window, but most importantly, ensure improved protection against low temperatures and noise. With a smaller sash dimension (108 mm casing), more daylight enters the room, which also reduces heating costs.
Sealed glazing unit with U = 1.0 W/m2k

The excellent insulation parameters of this sealed glazing unit guarantee low heat loss and thus reduce building heating costs.
Two-chamber sealed glazing unit Ug=0.5W/m2K

This is possible to use in the PIXEL window two-chamber glazing units with a coefficient of Ug=0.5W/m2K. With this solution, the Pixel window may be included in the energy-saving window segment (Uw of 0.8 W/m2K)
Uw = 0.8 W/m2K

The lower the coefficient of UW thermal conductivity of a window, the less loss of energy and lower heating costs. The PIXEL window with a Uw coefficient of 0.8 (with Ug=0.5 glazing unit and Warmatec frame) not only meets but also exceeds the rigorous standards for thermal insulation, ensuring the comfort of the homeowner.
A coloured Warmatec frame is available as an option

The Warmatec frame, made of high-grade stainless steel and plastic, is a combination of outstanding parameters with high aesthetic value. The frame minimises the risk of vapour condensation in the corners, which are the coldest points of the glass panel. It also improves the thermal performance of the window, thus reducing energy consumption costs (reduction of the U-value by as much as 10%). With the available selection of colours, the frame will give the window an air of elegance and will make it possible for the user to match it to the colour of the window.
Under-sill trim with gasket

The Pixel window is fitted with an under-sill trim with gasket that enables correct and sealed assembly of the cillboard and the windowsill. The trim further improves the thermal and noise insulation of the window. A special gasket in the trim also provides additional protection against the penetration of rainwater into the room.
Sound Reduction Index (dB) = 33 (-1, -4)

The higher the Rw value of acoustic insulation of a window, the greater the protection against noise. The Pixel profile, with an Rw (dB) = 33 (-1, -4) coefficient, is a barrier against annoying noises and provides peace and quiet.

Safety

The SafetyPlus mushroom striker plates are fastened to the steel reinforcement inside the frame

The mushroom striker plates are attached to the steel reinforcement, which makes breaking into the room significantly more difficult. This solution provides additional protection against burglary.
1.75 mm thick window sash reinforcement

This proprietary profile reinforcement made of bent galvanised steel makes it possible to design large-sized windows. The thickness, shape and profile of the reinforcement ensure rigidity, correct function and an unchanged shape of the windows for many years. It also provides additional security for the window. The steel reinforcement system in the Pixel sash is patent pending.
7-year warranty

The products are covered by 7-year warranty, which confirms both their quality and the professionalism of our company. The warranty is not subject to any restrictions, such as payable technical inspections.

Comfort

Winkhaus Prolight Select invisible hinges

The fitting makes the handling of the window sash easier and increases protection against uncontrolled slamming. Unique, patented "SAFE LOCATION" solution - a system of specially designed fitting elements that ensure the correct sash position in the window. Additional multi-step tilt regulation by the handle ensures even more convenient use of the window.
1.75 mm thick window sash reinforcement

This proprietary profile reinforcement made of bent galvanised steel makes it possible to design large-sized windows. The thickness, shape and profile of the reinforcement ensure rigidity, correct function and an unchanged shape of the windows for many years. It also provides additional security for the window. The steel reinforcement system in the PIXEL sash is patent pending.
7-year warranty

The products are covered by 7-year warranty, which confirms both their quality and the professionalism of our company. The warranty is not subject to any restrictions, such as payable technical inspections.
Microventillation

A window unsealing mechanism to let in fresh air without the need to tilt or open the window at all. The perfect solution when the temperature is above 0°C.
Window tilt restrictor

A mechanism in the tilt window preventing the sash from shutting on its own. This element provides protection against the slamming of the sash due to draft.
Optionally, the low win-step threshold can be used

This reliable balcony window element reduces the risk of tripping. Reducing the threshold height to 20 mm allows free movement between the flat and the terrace or balcony.

Appearance

Unique design

Proprietary, lean and elegant profile, with a 33% narrower floating mullion and symmetrically placed handle - the only profile of this kind in Poland. The larger glazing area compared to traditional profiles reduces the consumption of heating energy by increasing the volume of sunlight entering through the window.
ColorFull

The ColorFull veneering technology provides uniform colour and structure for the entire window, even when it is open. The solution is available in a wide selection of colours that will match any interior.
Accessories

Unique glass gasket finishing solution at the angle of 45°; the glazing bead, harmonised with the sash curvature, and special drain plugs in Sheffield Oak colour improve the visual aesthetic of the window.
A coloured Warmatec frame is available as an option

The Warmatec frame, made of high-grade stainless steel and plastic, is a combination of outstanding parameters with high aesthetic value. The frame minimises the risk of vapour condensation in the corners, which are the coldest points of the glass panel. It also improves the thermal performance of the window, thus reducing energy consumption costs (reduction of the U-value by as much as 10%). With the available selection of colours, the frame will give the window an air of elegance and will make it possible for the user to match it to the colour of the window.
dESIGN+ handle

The dESIGN+ handle was designed in cooperation with the renowned design consultant KISKA, exclusively for the Oknoplast brand. The shape of the handle lends it a modern, minimalistic character. Furthermore, the handle is durable and comfortable to use, and its universal tint harmonises both with modern and classical interiors. Also available with a key lock.
EPDM gaskets

Durable and flexible gaskets with high resistance to weather conditions, such as UV radiation, humidity or ambient temperature changes.
Multi Power invisible hinges are available for this model

The so-called "invisible hinges", concealed between the window frame and the sash, are a unique solution developed on the basis of the Multi Power system. Concealed hinges improve the aesthetic features of the window, but also its tightness. They also make it easier to keep the blinds, window blinds and shutters clean.
